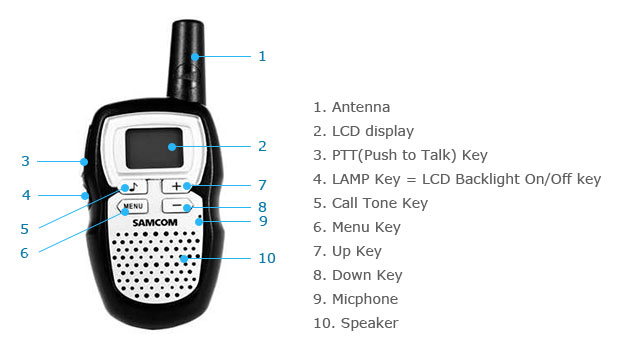

1.Overview

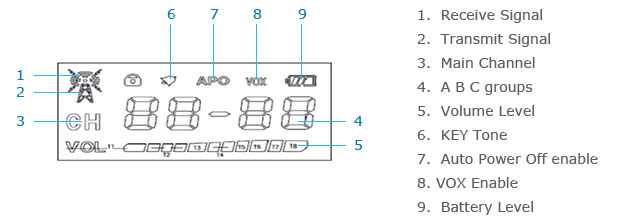

LCD Display

2.GENERAL OPERATIONS

Install Battery

Insert a coin to the battery door gap.

Turn the coin with some force to open the battery door.

Follow the polar directions and insert 3 x AAA size batteries.

1.POWER ON/OFF

To power on the radio , press MENU key for 2 seconds until a beep is heard and the

LCD display turn on.

To power off the radio. Press MEUN key for 2 seconds until LCD display turns off.

2.MAKING COMMUNICATIONS

The radio has 10 main frequencies and 3 CTCSS codes effectively giving you 33

channels you can communicate with any other user who is using the same

combinations, providing they are within range.

3.SPEAK TO OTHER RADIO

Press & hold the PTT key LCD TX Icon indicating the radio is transmitting.

Hold the radio in a vertical position with the microphone 3-5 cm from your mouth and

then speak.

When you finish speaking , release the PTT Key and a beep tone will be heard.

4.LISTEN TO OTHER RADIO

The radio will automatically sound received signal from the other radio with the same

channel and LCD shows the icon

When you press the PTT key. You can't listen to other radios. Make sure you do not

press PTT key for listening.

Adjust volume control if necessary.

5.ADJUSTING SPEAKER VOLUME ( 8 LEVELS)

Press the up key + to increase the volume

Press the up key - to decrease the volume

6.LCD Backlight On/Off

Press the LAMP key to turn on LCD backlight when necessary.

Press the LAMP key again to turn off LCD backlight

REMARKS:

Please always turn off the LCD backlight after used or otherwise, it will keep the LCD

backlight continuously ON and drain out battery.

7.MENU FLOW CHART

Press Menu key MENU once to enter main channel selection. Press MENU again for next

function selection etc.

Main Channel → CTCSS → VOX → Call Tone → APO → Key tone → Roger Beep → Main

Screen

8.SELECT CHANNEL

To select the main channel

Press the MENU key once, Main channel number displayed will flash.

Press "+" or "-" key to select your desired main channel number.

Press the PTT key to confirm and quit or press MENU to continue next function setting.

You have 13 seconds to decide before auto-reverting back to the main screen.
